Asia Pacific J Clin Nutr (1994) 3, 161-167

Immunomodulation of malnourished mice bearing Dalton's
lymphoma

Debasis Ghoshal PHD* and Subha Manna MSc**

Department of Chemistry* and Microbiology**, Bose Institute, Calcutta, India.



The immunomodulatory effect of a mouse bone-barrow-derived cytokine (BIM), (mol wt<10 kd), was studied in mice bearing Dalton' s lymphoma. It was observed that this factor increased the life-span of mice malnourished with respect to vitamin B-complex and ascorbic acid and infected with Daltons' lymphoma, by 40±4 days when compared to malnourished lymphoma controls while in animals maintained on balanced diet (BDF) the increase in life-span was just over 11±2 days. In cultured bone marrow cells at different time intervals after introduction of lymphoma cells it was shown that introduction of lymphoma cells increased the secretion of BIM. While the lymphoma developed the secretion of BIM diminished much earlier in malnourished than in BDF mice. This observation further strengthens our previous findings that the BIM acted as an immunomodulator much more effectively in malnourished animals than in animals fed a balanced diet, where a feed-back inhibitory effect might be present.



Introduction

Immunodeficiency due to malnutrition paves the way for the development of many types of lymphoma¹. It is currently posited that functional defect of the lymphoid tissue compartment, as a consequence of defective interaction between host and cell, may be one of the possible reasons for lymphoma development². If a specific defect lies within the host then reatinal therapy correcting the microenvironment of the host would be more effective than eliminating the neoplastic cell. Thus conventional radiotherapy and chemotherapy are now widely in use. Recently, as part of monoclonal antibody«technology, immunological techniques including antibody therapy and biological response modifiers, eg interferons, have begun to be explored. Bone marrow transplantation in patients who are otherwise resistant to conventional treatment is now being explored and this technique may be more effective in the early stage of the disease³. But bone marrow transplantation is a very expensive and difficult approach in an already immunocompromised Affected-affected host. In this paper we discuss a possible immunomodulatory approach to treating lymphoma by bone marrow cytokine.

Earlier reports^4-6 showed that a rodent bone marrow cell secreted factor immunomodulated malnourished immunosuppressed mice by not only improving the T and B cell population and functions in immunocompetent organs, but also the bone marrow cellular compartment and peripheral blood profile. An increased resistance towards lung and gastrointestinal infections, which otherwise proves fatal in untreated malnourished control³, was also observed. To further study the immunomodulatory activity of this factor i 1000 t was subsequently tested in mice infected with Dalton's lymphoma.

Materials and method

Male Swiss mice (age 30 days; body wt 16±2g) were maintained on ad libitum balanced diet for 7 days under 12-h light- dark cycle in suspended wire cages. The mice were then divided into two batches of 20 each and one batch rendered malnourished in regard to B-complex vitamins and ascorbic acid^4,5.

Development of lymphoma

A Dalton's lymphoma (DL) cell line is maintained in male Swiss mice at Bose Institute. The lymphoma cells were collected from the peritoneum in normal saline in an aseptic condition and pelleted in cold centrifugation (500 rpm for 10 min). The viability of cells was studied by the trypan blue exclusion method (>95% viable) and each experimental mouse received 2 x 10⁴ cells, intraperitoneally. The lymphoma was allowed to grow in vivo for 3 days, in both the balanced-diet-fed (BDF) and B-complex and ascorbic-acid deficient (D) groups

At different time periods bone marrow cell cultures were performed in the BDF-DL group by the method described below and the secretory profile of the bone marrow factors evaluated, compared and contrasted with uninfected controls.

Preparation of bio-immunomodulator (BIM)

Unfractionated mouse bone marrow cells, flushed from the femurs of healthy young animals, were repeatedly aspirated and ejected from a syringe to obtain single cell suspensions. The cells were cultured in RPMI 1640 (pH 7.3) serum-free medium at 37°C for 18 h at a concentration of 3x 10⁶ cells/l. At the end of the incubation period, the cells were pelleted by centrifugation (500 rpm) at 4°C and the supernatant fluid was collected⁶. The cell-free crude extract was then subjected to membrane filtration under N₂ pressure with continuous stirring and with a molecular cut-off range at 10 kd (Amicon, USA). Two fractions were obtained, Fr A (mol wt > 10 kd) and Fr B (mol wt < 10 kd). To locate the presence of active fractions both the fractions were screened for antilymphoma activity on BDF mice bearing 6-day-old lymphoma. Crude Fr A/B was injected ip in three divided doses at an interval of 5 days to BDF-DL-bearing mice and it was seen, as will be discussed in detail later, that Fr B contained factor(s) capable of increasing life-span of Bearing-bearing mice, with a mean increment of 8 ± 4 days over saline-treated controls.

Studies on Fr B (mol wt < 10 kd)

The proteins of the crude filtrate (mol wt < 10 kd) were precipatated by 60% ammonium sulphate cut at 4°C, reconstituted in 0.9% NaCI, dialized against dd H₂O at 4°C overnight in benzoylated tubing (Sigma, USA), Iyophilized and again reconstituted in saline. The protein concentration was estimated by Lowry's method⁷ using BSA as standard. The protein sample (conc.435 mg/ml) was applied to a Sephadex G-10 (Sigma USA) column (1.8 cm x 27 cm) pre-equilibrated with 50 mM Tris-HCI buffer, pH 7.2. The flow rate of the column was maintained at 8.0mSh and 2-ml fractions were collected. The protein of the collected fractions was measured at 280 nm (Figure 1). The present paper deals with the immunomodulatory effect of pooled fraction 8-12 under the first peak, hencefonh known as BIM-1 (Figure 1).

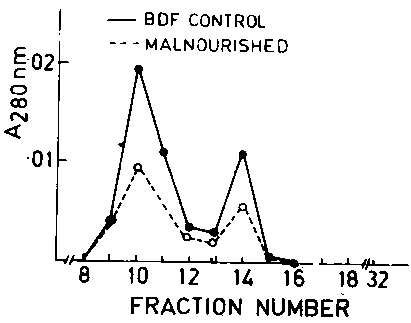

Figure 1. Sephadex G-10 column chromatography of mouse bone marrow cell secreted factor (mol wt < 10 kd). Pooled fraction 8-12 under the first peak is BIM-1.



Immunomodulatory effect of BIM-I

1000

Three days after the introduction of lymphoma in both BDF and D mice, three doses of BIM-1 (days 9, 11 and 23 after introduction of the deficient diet; protein conc 0.3 Fg/dose) was injected ip, saline being injected into a control mouse. The mice were weighed every alternative day, their death recorded and a postmortem (PM) examination along with histopathology was performed.

Statistical calculations

Statistical evaluation was done using the Kaplan-Meir probability curve and Students 't'-test.

Results

Figure 2 shows that the deficient mice bearing Dalton's lymphoma (D-DL) died within 20 days after the onset of experimental diet, ie within 14 days post-lymphoma introduction (PLI). Respiratory distress was observed within 9 days PLI and the deaths, as observed from postmortem (PM) and histopathological findings, were primarily due to pneumonia of bacterial origin (Figure 3). The spleen (49 ± 8 mg) and the thymus (2 ± 1 mg) were minimal in size. There were peticheal haemorrhages on the spleen and histology showed oedematous fluid, 'stary' appearance of the cOnex and atrophy of the follicular region. The later observation was also found in the thymus (Figure 3). The liver was pale, with peticheal haemorrhage and pus-filled whitish growth on the surface and microscopically showed infiltration with MN cells (Figure 3). Fatty changes, perivascular cupping by MN cells, collection of oedematous fluid and some nodules of the lymphoma cells were also evident. The kidney and intestine showed signs of haemorrhage.

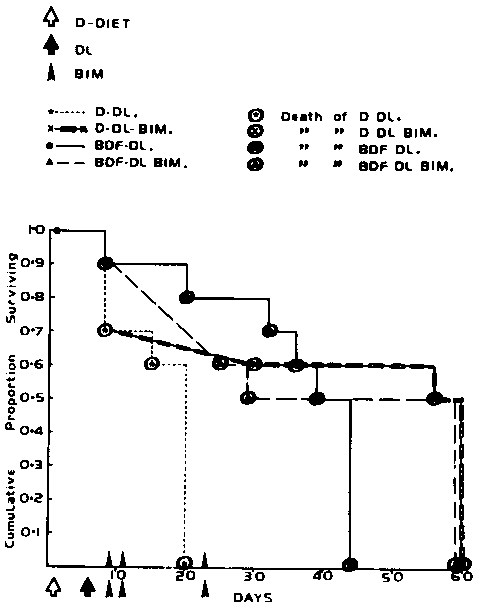

Figure 2. Immunomodulatory effect of mouse bone marrow cell secreted BIM₁ on mice infected with Dalton's lymphoma. BDF = Balanced Diet Fed; D = Deficient (8-complex vitamins and ascorbic acid) diet fed; DL = Dalton's lymphoma; BIM = Bio-immunomodulator.



In contrast, 50% malnourished BIM- I -injected Bearing-bearing mice showed no respiratory distress till 53 ± 3 days of malnourishment, ie 48 ± 3 days PLI. The abdominal circumference did not show appreciable growth of the lymphoma in these animals till 30 ± 8 days PLI (45 ± 6 days of malnourishment) and 22 ± 5 days after the last injection of BIM- 1 (Figure 2).

After 30 ± 8 days of malnourishment 40% of animals died. Their thymus was rudimentary (wt 2 ± 1 mg) though the spleen was normal in size (wt 120 ± 20 mg). Histopathological examination showed collection of oedematous fluid and fibrous changes. The thymus had giant eosinophilic cells at the corticomedullary junction. There was haemorrhage of the lungs, collapse of alveoli, infiltration of MN, and giant eosinophilic and PMN cells in the aveolor cavity which contained eosinophilic exudation. The liver showed profuse haemorrhagic spots, oedematous changes, and infiltration by PMN and MN cells. Giant anaphase stage basophilic cells were found in clusters that formed nodules (Figure 3). The peritoneum was covered with the lymphoma cells like a white sheet that was viscous in nature.



Table 1. Effect of a bone marrow-derived bioimmunomodulator (BIM) on mean organ wt (in mg) of Swiss mice with Dalton's lymphoma (DL).



Organ	BDF control	D control	BDF-DL	BDF-DL-BIM	D-DL	D-DL-BIM
Thymus	23 ± 2	4 ± 2*	4±1	16±5*	2± 1	2± 1
Spleen	52 ± 6	30 ± 8*	105 ± 10*	105 ± 16	49 ± 8*	120±20*

BDF: Basal diet fed, D: deficient *: P < 0.001.



Fifty per cent of BIM-1 treated mice were alive after 60 ± 2 days, ie 55 ± 2 days PLI; 45 days after the last injection of BIM-1. This was in marked contrast to the fate of untreated animals which died within 20 days of malnourishment, ie 14 days PLI. The post-mortem and histological findings were similar to those described above.

The BDF-DL mice showed a steady growth of the tumour. Fifty per cent of the animals died by 35 ± 4 days PLI. All the animals were dead by 39 ± 2 days PLI, ie there was only 15 ± 3 increment in life-span of the BDF-DL mice over the malnourished lymphoma control (P< 0.001). These mice initially showed no signs of infection; however, after 25 ± 4 days PLI lung infection was observed. In post-mortem studies thymus and spleen were larger than those of malnourished lymphoma controls (thymus 4 ± 1 mg, spleen 105 ± 10 mg as against thymus 2 ± 1 mg, spleen 49 ± 8 mg P<0.001, Table 1). The abdomen was completely filled with y 1000 ellowish-red ascites fluid and there were cancerous nodules on the intestine and peritoneal walls. Histological studies of the thymus showed collection of oedematous fluid and fibrous changes (Figure 3). The lymphocytes were found to be at different stages of development and some non-stained cells of various sizes were also present. The lungs showed collapse of alveoli and infiltration by MN cells, and PMN cells, with vacuolated cytoplasm, were found in alveolar space (Figure 3) where there was sometimes basophilic secretion and infiltration by lymphoma cells. Spleen showed infiltration by DL cells, fibrous changes and disintegration of pulp. The liver had oedematous changes, damage to the epithelial lining of the lumen of arteries and veins and cancer nodules were observed (Figure 3). In some mice, 30 days PLI, the spleen was found to be enormous (wt 335 ± 50 mg). Histological studies showed degeneration of Lymphoid follicle and infiltration by macrophage and lymphoma cells.

Fifty per cent of BDF-DL BIM-treated mice were dead by 25 ± 2 days PLI. All the animals died by 52 ± 2 days PLI, thus an increase in lifespan by only 11 ± 2 days over BDF-DL controls was observed. In contrast DDL-BIM-1-treated mice lived approximately 45 days longer (P 0.001) compared to DL-controls.

No significant difference in longevity was observed between the BIM-treated groups. The thymus of the BDFDL-BIM mice weighed 16 ± 5 mg vs BDF-DL controls 4 ± 1 mg (P<0.001) while the spleen weighed 105 ± 16 mg ( no significant difference from BDF-DL controls). The spleen was pale and peticheal haemorrhage was observed. Under the microscope the spleen showed degeneration of B-cell centres more than T-cell centres. There was infiltration by lymphoma cells. The thymus showed degeneration of cortex and oedematous fluid in the follicles. The liver showed fatty degeneration and evident necrosis. There was infiltration be MN cells and lymphoma cells were present in nodular formation (Figure 3). The lungs showed exudatins containing RBC in the alveolar space and rupture of alveolar wall (Figure 3).

Table 1 shows that in BDF-DL mice with atrophy of the thymus there was gain in weight and in cellularity (evidenced by histological studies) after BIM treatment. The spleen showed initial hypertrophy after lymphoma injection, but there was no change in gross organ weight following BIM treatment. The malnourished Bearing-bearing mice showed changes in microscopic thymus structure (Figure 3) following BIM treatment. Little change in macroscopic structure was observed. This is in sharp contrast to that observed in malnourished animals without lymphoma⁶. The spleen, on the other hand, showed hypertrophy after lymphoma injection and again after BIM treatment.

The bone marrow secretory profile of BDF-DL mice showed an initial overproduction of BIM-1, but as the lymphoma grew a suppressed production of cytokine was observed (Figure 4).

Discussion

Reduced socio-economic status, presumably implying impaired health status, has been reported in association with increased incidence of lymphoma¹. Thus malnourished mice, with low levels of immune competence have unsurprisingly also exhibited a rapid spread of lymphoma^6,8 - see also Figure 2. However BIM-I treated malnourished mice survived longer than untreated mice on a balanced diet while untreated manourished controls died very early (10 ± 4 days PLI).

The growth of the lymphoma has a suppressive effect on bone-marrow secretory profile (Figure 4), similar to that observed during malnourishment (Figure 1). It seems that in the establishment of lymphoma some factor(s) are involved which directly or indirectly suppress bone marrow cytokine secretion that is essential for optimum immune response^4-6. This may also explain the immune suppression observed during parasitism^{9,10 and in the case of Burkitt's lymphoma11. Whether this initial upsurge followed by suppression of BIM-1 production has got anything to do with establishment of infection/tumour remains to be confirmed. Because secretory products believed to be present in the serum of Bearing-bearing mice, suppress BIM secretion, injection of BIM-1was used to find out whether it has any immunomodulatory effect on mice bearing Dalton's lymphoma whether the mice are well-fed or malnourished.}

Table 1 indicates that BIM seems to act differentially on thymus and spleen depending upon the nutritional status of the Bearing-bearing host. In BDF animals introduction of lymphoma stimulates indigenous BIM production (Figure 4) so as to counter the threat of lymphoma by increasing the production of WBC in circulation⁶. We injected BIM in the early stage of lymphoma establishment and this might trigger a negative feed-back system as suggested earlier⁶ and as has also recently been observed with LIF¹². As the lymphoma established itself, the bone marrow showed hypoplasia (observed from cyto-centrifuged smears). This may be one of the causative factors for suppression in indigenous BIM production.



Figure 3. Histological changes observed in Swiss mice, (basal diet fed (BDF) and malnourished infected with Daltons' lymphoma (DL) and treated with BIM₁ Giemsa's stain. a₁ = BDF-DL; a₂ = BDF-DL-BIM₁; a₃ = D-DL; a₄ = D-DL-BIM₁.

Liver. a₁-a₃: Infiltration of neutrophil and mononuclear cells in hepatic tissue, oedema, necrosis and formation of cancer nodules by lymphoma cells. a₄: Lesser amount of infiltration of WBC in hepatic tissue. Cancer nodules very small in size and few in number. x 400.

Lung. Bronchopneumonia. a₂ and a₄ show reduction in microbial load compared to a₁ and a₃ x 400.

Thymus. a₁ and a₃: atrophy of thymus. a₂ and a₄: regeneration of thymus cortex more than medulla x 100.





In malnourished mice, in whom BIM production was suppressed much earlier⁶, external BIM injection seemed to revive immunocompetence more effectively and to be able to prevent rapid growth of tumour cells.

Earlier studies showed that malignant cells display elevated Na⁺-K⁺-ATPase activity and increased intracellular (IC) Na⁺ ion conc¹³. Sodium ions now appear to be a favoured candidate for the role of a major 'early' mediator of cell division. Moreover, reduction in the extracellular (EC) CA²⁺ ion has also been found to favour continued growth of malignant cells¹³.

Our studies on brain lysosmal Na⁺-K⁺-ATPase¹⁴ and CA²⁺ - Mg²⁺-ATPase¹⁴ showed a different effect of BIM in BDF control and malnourished rats. In BDF animals immunization suppressed the ATPase activity while in malnourished animals an increase in activity was noticed. BIM injection in BDF animals showed no significant changes in ATPase activity, compared to immunized BDF controls, while in malnourished animals an init 1000 ial suppression was noticed followed by opening of the ion channel.. This opening of the ion channel, as evidenced from increased ATPase activity, probably alters the EC/IC ionic balance of the malignant cells tilting it in favour of the normal cellular microenvironment. This correction of ionic microenvironment seems to be able to prevent rapid tumour growth in D-DL-BIM mice, as stated above, thereby supporting our previous observation⁶ that D-mice gain more from BIM treatment.

Conclusion

In conclusion, from our previous communication^4,6 it was evident that the bone-marrow secreted factor showing immunomodulatory activity was active in malnourished immunosuppressed animals more effectively than BDF controls. In this communication similar observations were also noted. Here the bone-marrow secreted factor worked better in malnourished lymphoma bearing mice than in controls fed a balanced diet thus strengthening our previous hypothesis that a physiological feed-back inhibitory activity might be present in BDF controls at an early stage of lymphoma development.

Acknowledgement - The authors thankfully acknowledge the help and encouragement received from Prof. AK Barua, Department of Chemistry and Prof. SL Chakraborty, Department of Microbiology, Bose Institute. Research support was provided by the Indian Council of Medical Research.

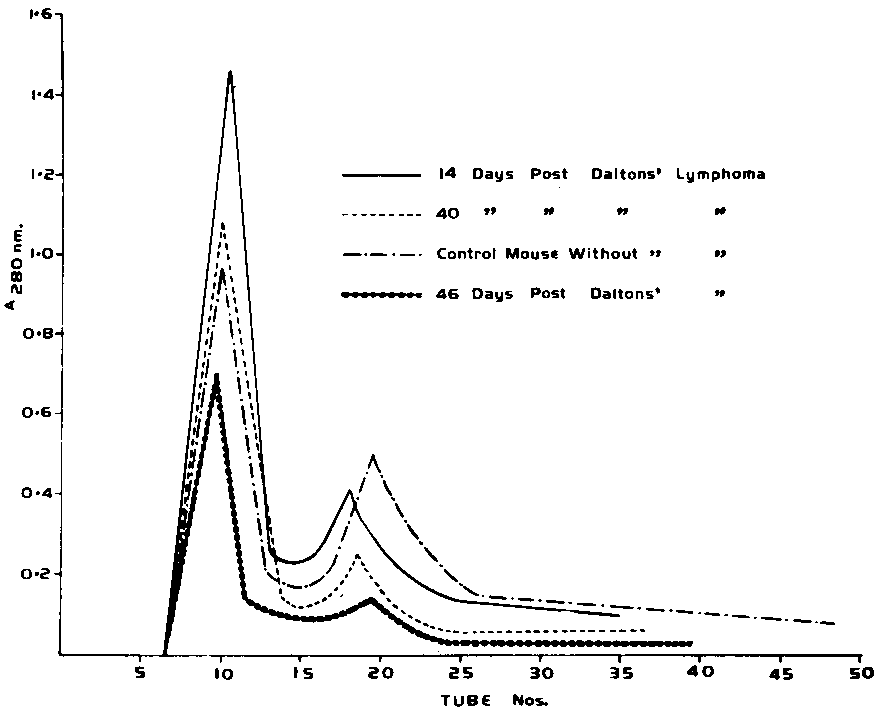

Figure 4. BIMI secretion from bone marrow at different periods after introduction of Daltons' lymphoma (DL) in Swiss mice.



References

1.        Bemard SM. Epidemiology of malignant lymphoma. In: Habeshaw JA, Lauder 1, eds, Malignant lymphoma. Churchill Livingstone, 1988; 10-11. 9

2.        Habeshaw JA, Lauder 1. Current problems in malignant lymphoma. In: Habeshaw JA, Lauder 1, eds, Malignant lymphoma. Churchill Livingstone, 1988; 1-5. 10

3.        Horwich A. Hodgkin's and non-Hodgkin's lymphomas: clinical assessment and treatment In: Habeshaw JA, Lauder 1, eds, Malignant lymphoma. Churchill Livingstone, 1988; 253-227.

4.        Ghosal D, Roy S, Basu S. Studies on bone marrow derived bio immunomodulator in improving immune response in immunosuppressed water soluble vitamin deficient mice. Proc Nutr Soc (UK) 1987; 46: 107A.

5.        Ghosal D, Roy S, Barua AK, Bhattachrya HM. Vaccine failure in malnourished animals: use of a bio-immunomodulator in improving the immunocompetence. (Abstract) First Espen Scientific Symposium Jerusalem, Israel, 1988; 13-17.

6.        Ghosal D, Barua AK, Roy S, Bhattacharya HM. Vaccine failure in malnourished animals: use of a bio-immunomodulator to improve immunocompetence. Nutrition 1990; 6 (2): 153-157.

7.        Lowry O, Rosenbrough NJ, Farr L et al. Protein measurement with folin phenol reagent. J Biol Chem 1951; 193: 26.

8.        Ghosal D. Water soluble vitamin malnourished and immunity development - maternal-fetal relationship: a timely review. Trans Bose Res Inst 1985; 48: 29.

9.        Gasbarre LC. Limiting dilution analysis for the quantification of cellular immune response in bovine ostertagiasis. Vet Parasitol 1986; 20: 133.

10.     Klesius PH, Washbum SM, Ciprdia H, Hyne TB, Snyder TG 111. Lymphocyte reactivity to Ostertagia ostertagi L3 in type I ostertagiasis. Am J Vet Res 1984: 45: 230.

11.     Wheelock EF, Brodovsky HS. Dommant cancer. In: Stoll BA, ed, Prolonged arrest of cancer. John Wiley, 1982; 87-101.

12.     Escary JL, Pereue J, Dumenil D, Ezine S, Brulet P. Leukaemia inhibitory factor is necessary for maintenance of haematopoietic stem cells and thymocyte stimulation. Nature 1993; 363: 361.

13.     Hickman JA. Effects of cytotoxic agents on intracellular mediators. In: Stoll BA, ed, Prolonged arrest of cancer. Jon Wiley, 1982; 327-332.

14.     Ghoshal D, Sen PC, Barua AK. Differential effect of bone marrow protein on brain ATPase of immunized control and malnourished rats. Nutrition 1994; 10/1: 21 - 25.
